How to Machine Parts in Low Cost CNC Machining?

Introduction

For skilled engineers, designers, and procurement professionals, the ability to design parts that meet functional requirements while keeping production costs low is a core competitive advantage. Low cost CNC machining is not just about cheaper machines—it’s about making smarter choices in material selection, part design, tolerances, and manufacturing strategy.

This guide will help you understand the key factors that impact the cost of CNC machined parts and provide actionable strategies to optimize your design and reduce expenses.

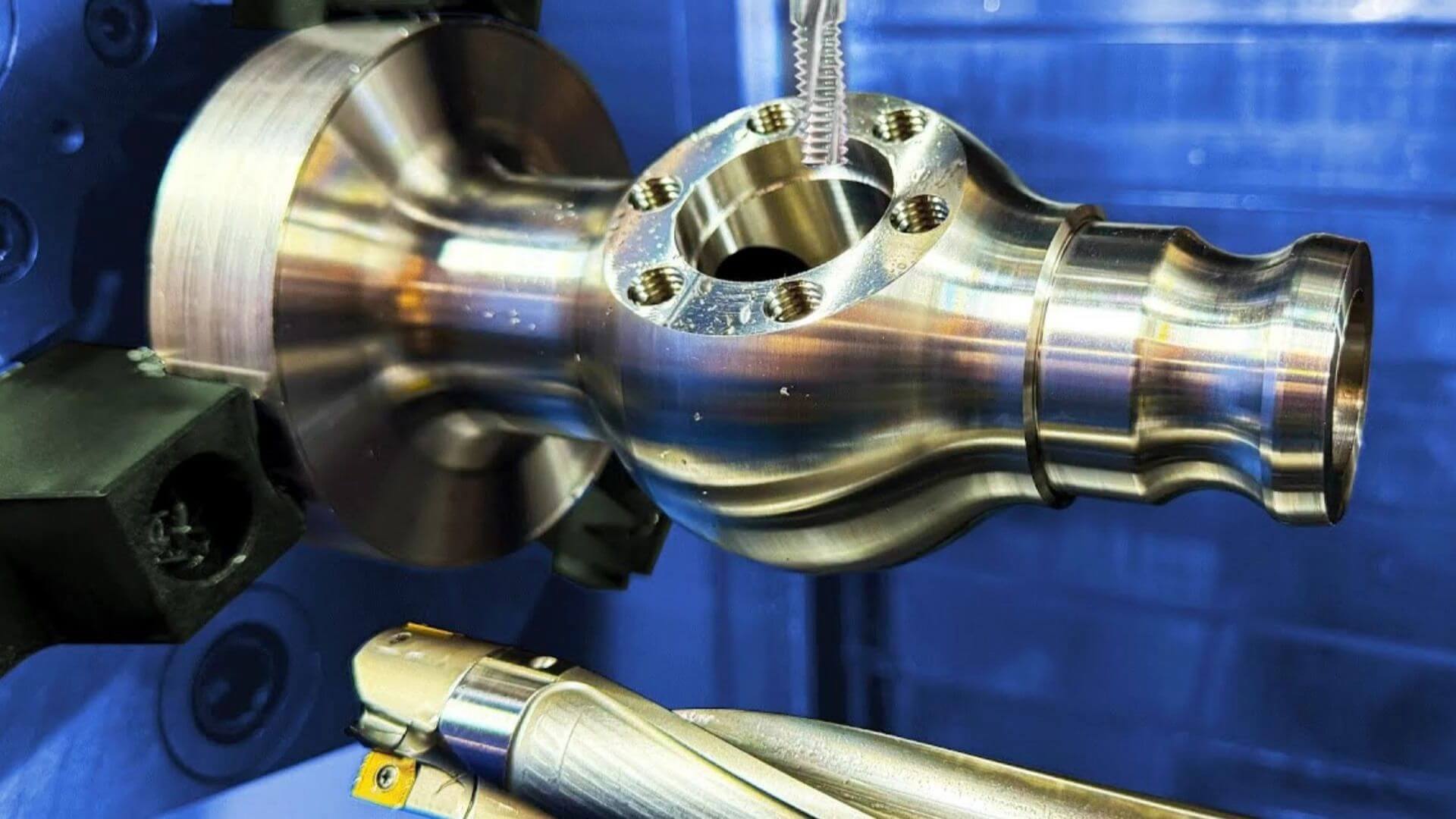

The key factors to achieve low cost CNC machining

1. Material Selection

• Material Cost: Raw material prices vary significantly. Stainless steel, titanium, and exotic alloys like Inconel are far more expensive than aluminum or plastics.
• Machinability: Harder or tougher materials require slower cutting speeds, specialized tooling, and more frequent tool changes, increasing machine time and tool wear.
• Raw Block Size: Parts machined from oversized blocks lead to higher material waste and cost.

2. Part Design Complexity

• Geometry: Intricate features such as deep pockets, thin walls, undercuts, small internal radii, and organic curves all increase programming and machining time.
• Multi-Axis Requirements: 5-axis or 4-axis machining allows complex shapes but comes at higher machine and labor costs.
• Poor DFM (Design for Manufacturability): Overly complex or unrealistic designs lead to waste and extended cycle times.

3. Machining Time

• Cutting Time: The longer the tool is engaged in material removal, the higher the machine cost.
• Tool Changes & Repositioning: Complex parts may require multiple tool changes or orientations, increasing cycle time.
• Setup Time: Each job requires machine setup and programming. Small batches bear a higher per-unit setup cost.
• Tool Wear: Hard materials degrade tools faster, leading to more frequent replacement and downtime.

4. Tolerance and Precision Requirements

• Tight Tolerances: Precision features demand slower feeds, specialized tooling, and more inspections, increasing machining cost.
• Surface Finish: Requirements like mirror polishing, fine brushing, or low Ra values often require additional finishing processes.

5. Production Volume

• Economy of Scale: Larger orders allow programming and setup costs to be distributed across more units.
• Prototypes & Low Volume: Unit price can be significantly higher due to the inability to amortize setup and tooling costs.

6. Post-Processing and Surface Treatments

• Common additional operations include deburring, heat treatment (quenching, tempering), anodizing, electroplating, PVD coating, painting, or polishing—all of which add cost.

7. Labor and Facility Location

• Labor Cost: CNC machining in developed countries like the US or Germany usually incurs higher hourly rates than in Asia.
• Operating Expenses: Shop rent, electricity, and maintenance costs influence final part pricing.

How to Reduce CNC Machining Costs

1. Simplify Design: Avoid unnecessary complexity, thin walls, deep cavities, and tight radii unless functionally required.
2. Relax Tolerances: Only specify tight tolerances where necessary. Standard tolerances are cheaper and faster to machine.

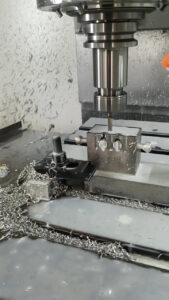

3. Select Machinable Materials: Choose easy-to-machine and affordable materials like 6061 aluminum when feasible.
4. Increase Batch Size: Larger orders help reduce per-part costs by distributing setup and programming time.
5. Limit Surface Treatments: Apply finishes only where required for function or aesthetics.
6. Use Standard Tool Sizes: Design around standard drill sizes and cutters to avoid custom tooling.
7. Consult Early with Your CNC Supplier: Manufacturers can provide valuable DFM feedback and suggest cost-saving revisions.
